Database Metrics

The database metrics option shows metrics for database objects and entities, including "SQL Routines".

The metrics data at a detailed level is split between "Database" and "SQL Routines". Each has its own tab. It also displays the distribution of data in the doughnut chart format.

• Database

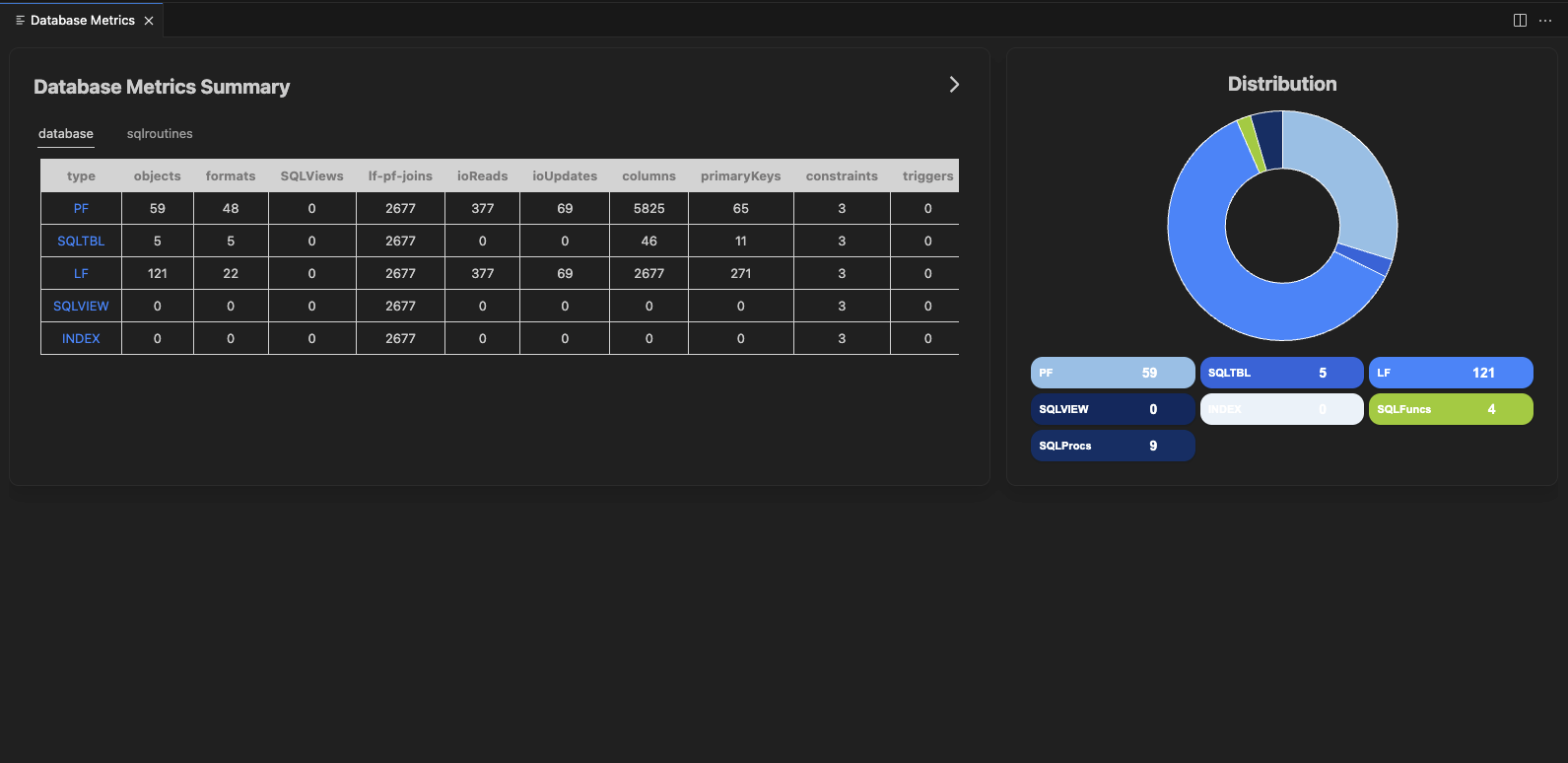

By clicking on the database tab, list of database objects based on its type is displayed.

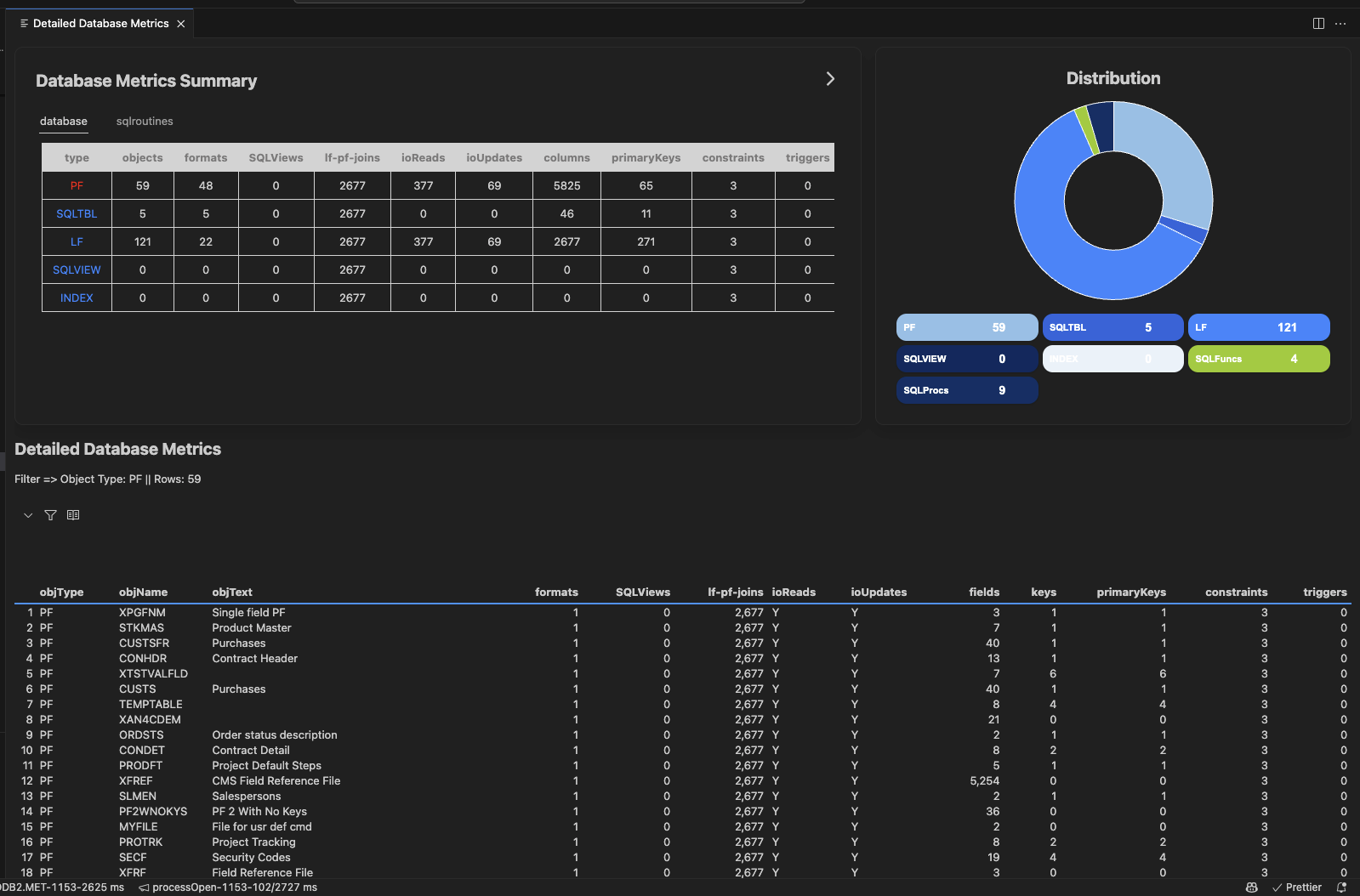

Clicking on any of the object types in the Database , opens the detailed information in the bottom part of the page, passing in the type selected as a filter parameter. The table contains the filtered detailed data based on type passed.

-SQL Routines

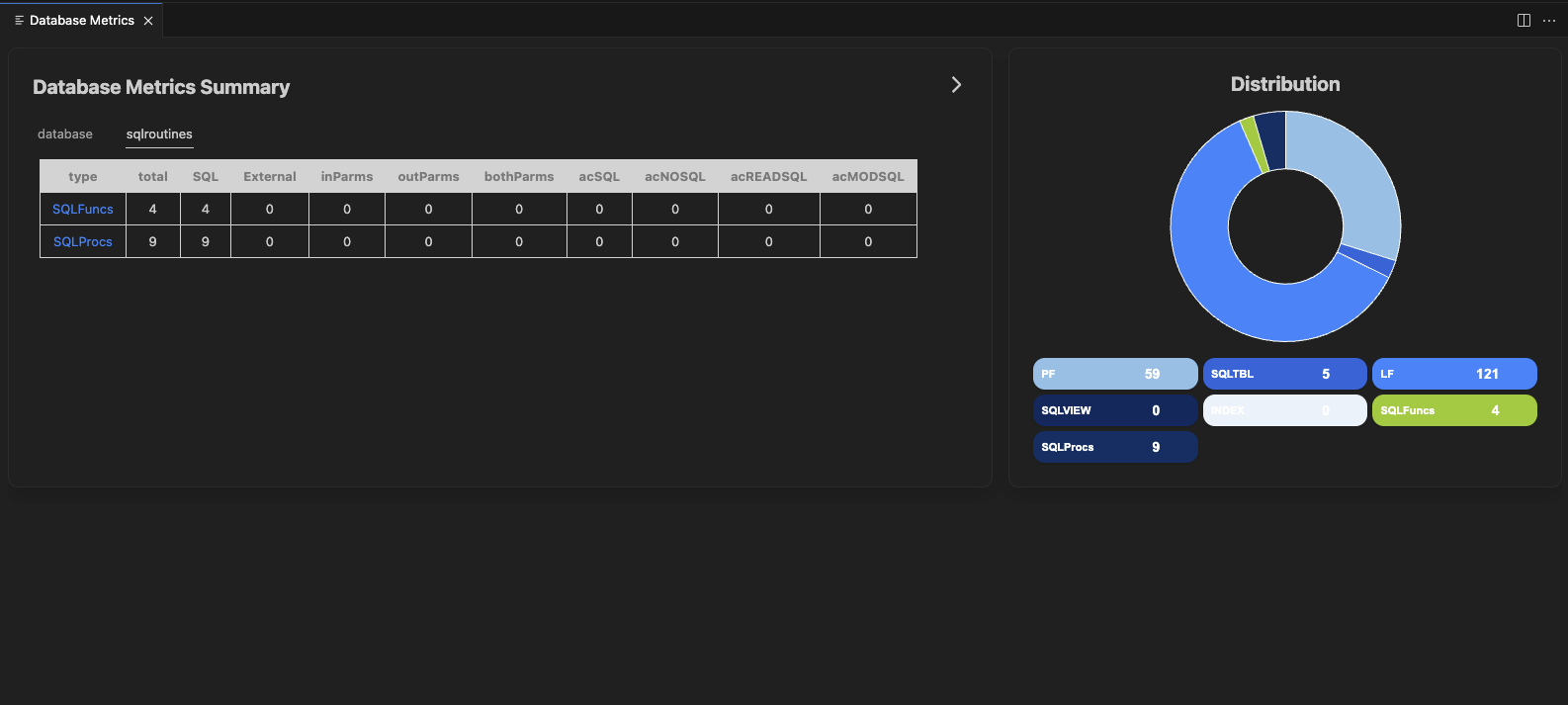

By clicking on the SQL Routine tab, list of objects based on sql routine type is displayed.

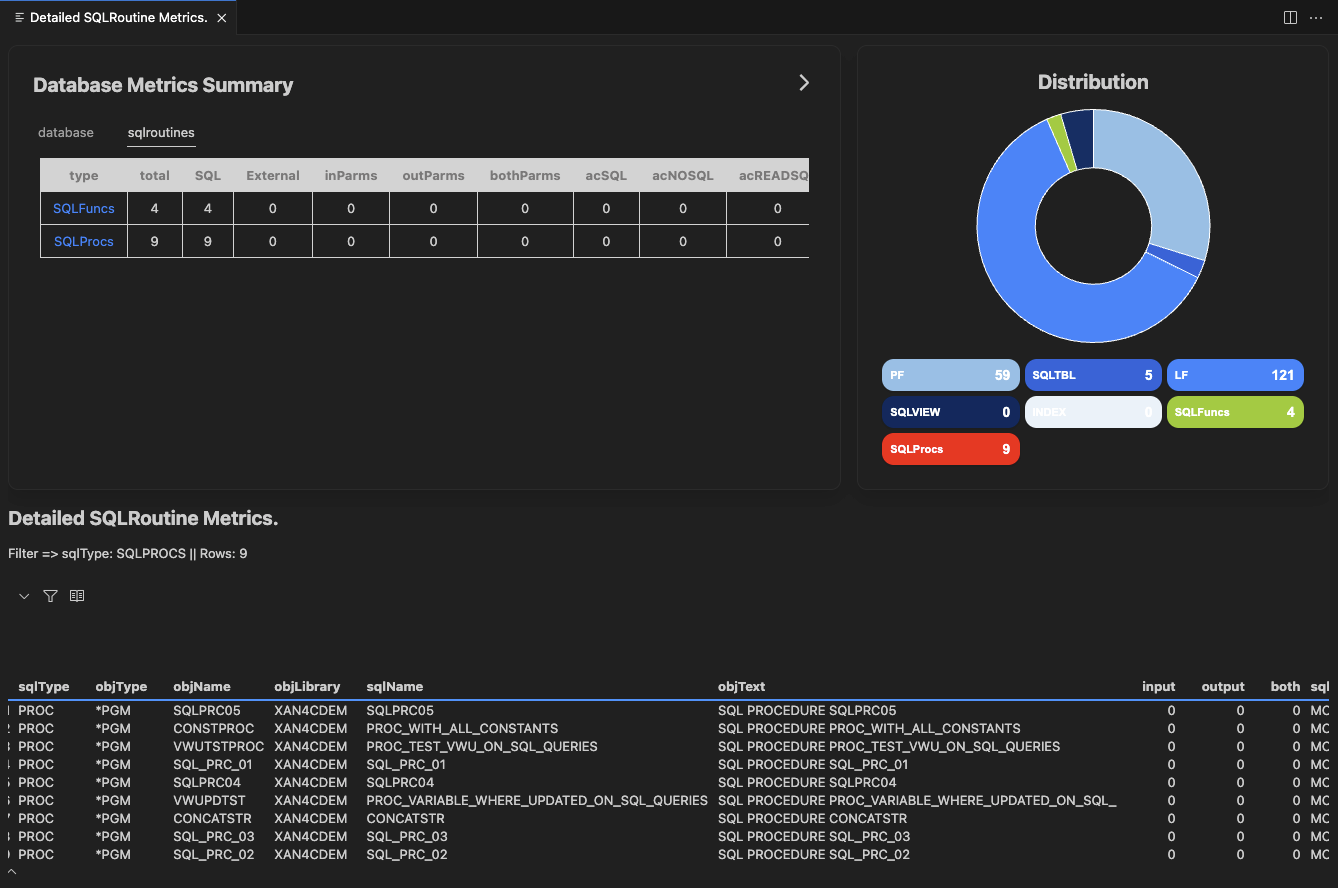

Clicking on any of the type in SQLRoutines tabs, opens the detailed table in the bottom part of the page, passing in the type selected as a query parameter. The table contains the filtered detail data based upon type passed.
