Report Export and Configuration

Call Chart Export

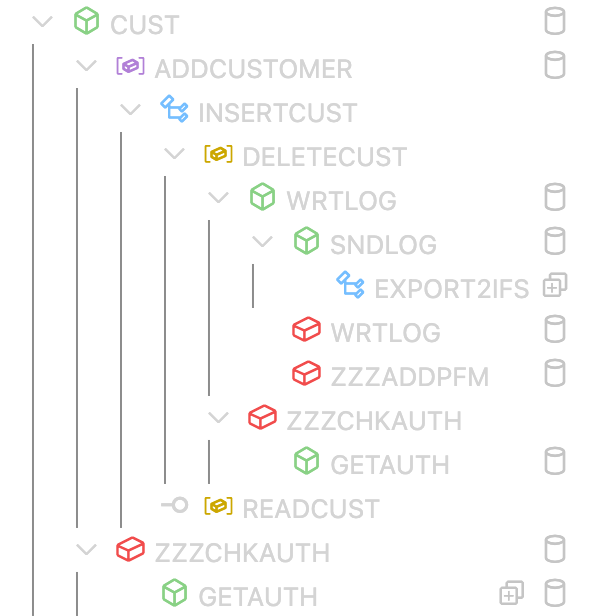

When icon is clicked, Call Chart tree can be exported as image file shown below.

CUST_CallChart

Object Lists Export

We can export any Object Lists which is rendered in grid form into excel file by clicking on button. Example- Exporting Programs list.

Note

When exporting the list, a prompt will appear asking whether you want to export all objects or only the items currently displayed on the screen.Select Yes to export all objects, or No to export only the visible list.

Click to view excel file

Markdown Reports

We can generate markdown report of any View like Call Chart, Dashboard, Object Dashboard etc. by clicking on icon on header part.

Generating Call Chart Markdown Report

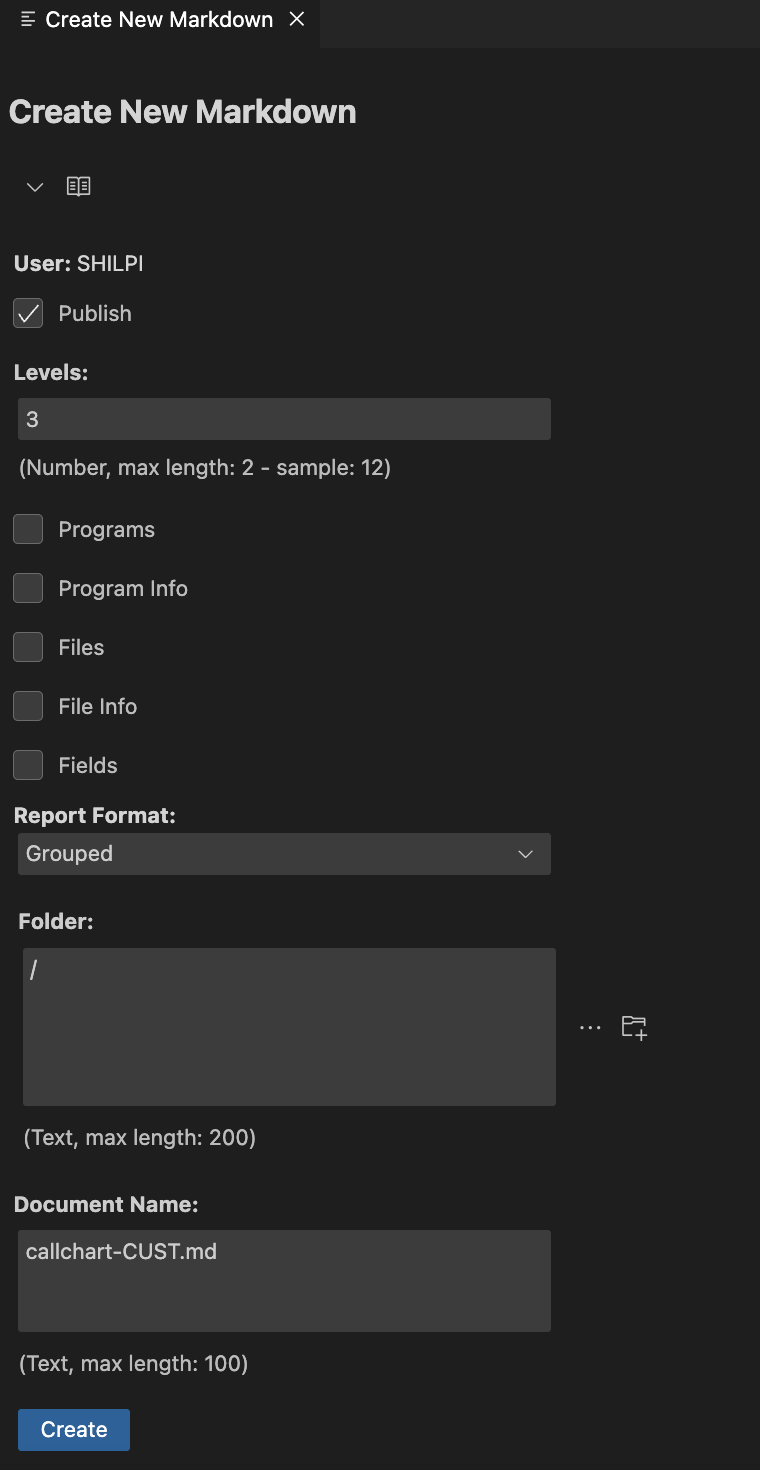

Report Configuration The user can select these details options as check boxes when downloading to markdown:

  • Programs the programs that are in the visible call stack at the level selected
  • Program Info the Object info for each program in the list
  • Files those PF/Tables/LFs etc used used by all objects in the diagram up to the level specified
  • File Info the Object info for each file in the list
  • Fields field Usage for each field actually used grouped below the file it comes from
  • Report Format this will be drop-down and can be either "Layered" or "Grouped". the default is "Grouped"

alt text

Click on Create button to create markdown file on server. Click to view Call Chart Markdown Report

Generating Dashboard Diagram Markdown Report

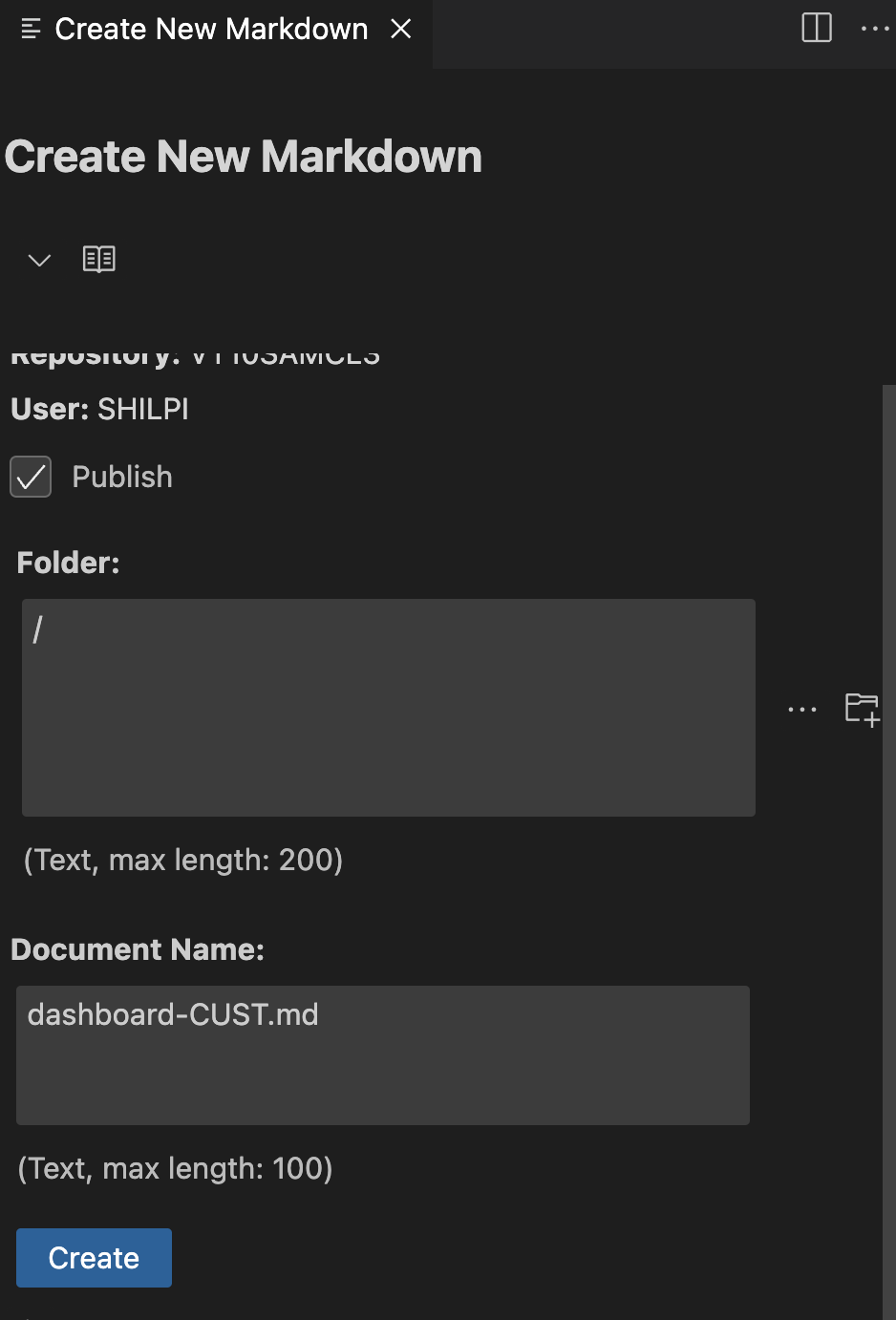

Report Configuration The user has to fill following details like path to report, filename etc. shown in image below to generate markdown report of Dashboard Diagram.

alt text

Click on Create button to create markdown file on server. Click to view Dashboard Diagram Markdown Report
